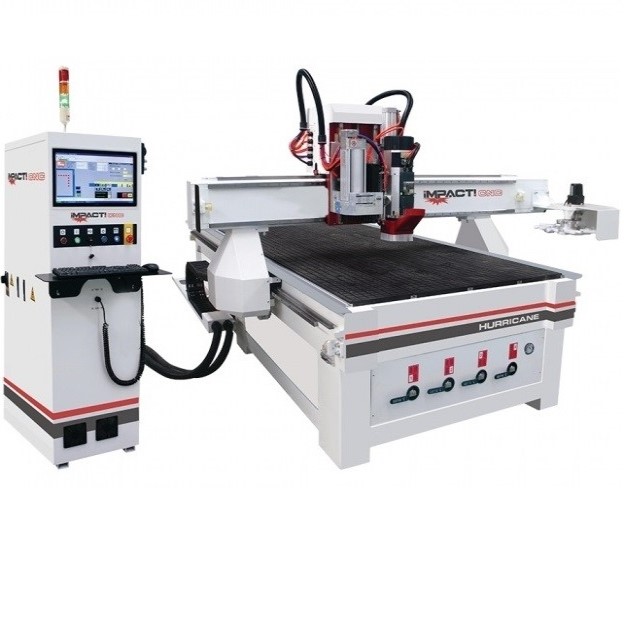

Impact CNC Hurricane Series (HUR-M/L/XL/XXL)

New!

he Hurricane from Impact CNC is a great all-rounder and can tackle almost any routing job!

It’s the perfect machine for Nested Based Manufacturing, shopfitting, sign manufacturing, general woodworking, plastics, or parts fabrication.

Click here to contact us for more information

Categories: , Brand Categories:

Description

Impact CNC Hurricane Router Series

The Hurricane offers the ideal combination of speed and power to cut high volumes of board on a daily basis.  Accuracy is assured with quality AC servo motors.  Impact CNC Hurricane routers can cut a wide variety of materials including:

  • Timber
  • HMR
  • MDF
  • Plastics
  • Aluminium Composite
  • Soft Metals
  • Foam and much more…

The Hurricane comes standard with all the features you will need for high production CNC routing.  Both the steel table frame and gantry are manufactured to the highest standard.

All 3 axes are powered by fast, reliable and quiet Japanese Yaskawa AC Servo motors which provide a fantastic mix of torque and power.  The X and Y axes run on square THK linear bearings and rails to ensure smooth and accurate travel.
These bearings are factory-sealed and provide maintenance-free reliability.
Included on all Hurricane machines are helical rack and pinion drives to guarantee high-accuracy.

Cutting on the Hurricane is performed by a 9.5kw HSD Auto Tool Change spindle.  Coupled with Impact CNC’s 8-tool gantry-mounted carousel it makes multiple-tool jobs a breeze and tool-changing is exceptionally fast.

Materials are held down with a powerful air-cooled vacuum pump and dust is efficiently removed with the Impact CNC dust extraction system which is included as standard.

All these components are driven by the industry renowned Syntec CNC controller.

To further increase productivity and enhance workplace safety automatic sheet-loading and unloading options are available.

Code Product Name Size
HUR-M Impact CNC Hurricane M 1300mm x 2500mm
HUR-L Impact CNC Hurricane L 1500mm x 3000mm
HUR-XL Impact CNC Hurricane XL 2000mm x 3000mm
HUR-XXL Impact CNC Hurricane XXL 2000mm x 4000mm

Standard Features:

  • 9.0kw HSD spindle & 8-tool auto tool change carousel on gantry
  • Fast, durable Panasonic or Delta AC servo motors
  • THK linear rails and sealed bearings
  • High-accuracy helical rack and pinion system
  • Syntec controller system with multi-function hand wheel
  • Zoned Phenolic vacuum table with powerful hold down pump(s)
  • Efficient dust extraction system
  • Router 8 design and tool-path software
  • Delivery, installation and training provided

Options:

  • Coolant atomiser
  • Extended gantry height
  • HSD multi-bore drilling system
  • Sheet loading system
  • Sheet unloading system
  • Custom table sizes
  • Upgrade to Osai Controller

Specifications

Feature M L XL XXL
Working Area (X Axis) 1230mm 1550mm 2050mm 2050mm
Working Area (Y Axis) 2480mm 3080mm 3080mm 4000mm
Clearance (Z Axis) 200mm 200mm 200mm 200mm
Spindle Italian HSD 9.0kw
Spindle Speed Adjustable 0-24,000 rpm
Tool Change Travelling 8-Tool Carousel on Gantry
Drive System (X & Y Axis) Helical Rack & Pinion
Drive System (Z Axis) Ball Screw
Drive Motors Panasonic or Delta AC Servos
Maximum Travel Speed 45 metres per minute (750mm/sec)
Table Top Phenolic Zoned Labyrinth Vacuum Bed
Controller Syntec
Interface Ethernet/USB/CompactFlash Card
Power Requirements 3 phase 415V/50hz
Operating Environment Temperature: 0-45°C
Machine Size (width) 2100mm 2300mm 2600mm 2600mm
Machine Size (length) 3300mm 4000mm 4000mm 4800mm
Machine Net Weight 1200kg 1500kg 2000kg 2200kg
Machine Gross Weight 1350kg 1800kg 2250g 2500kg
